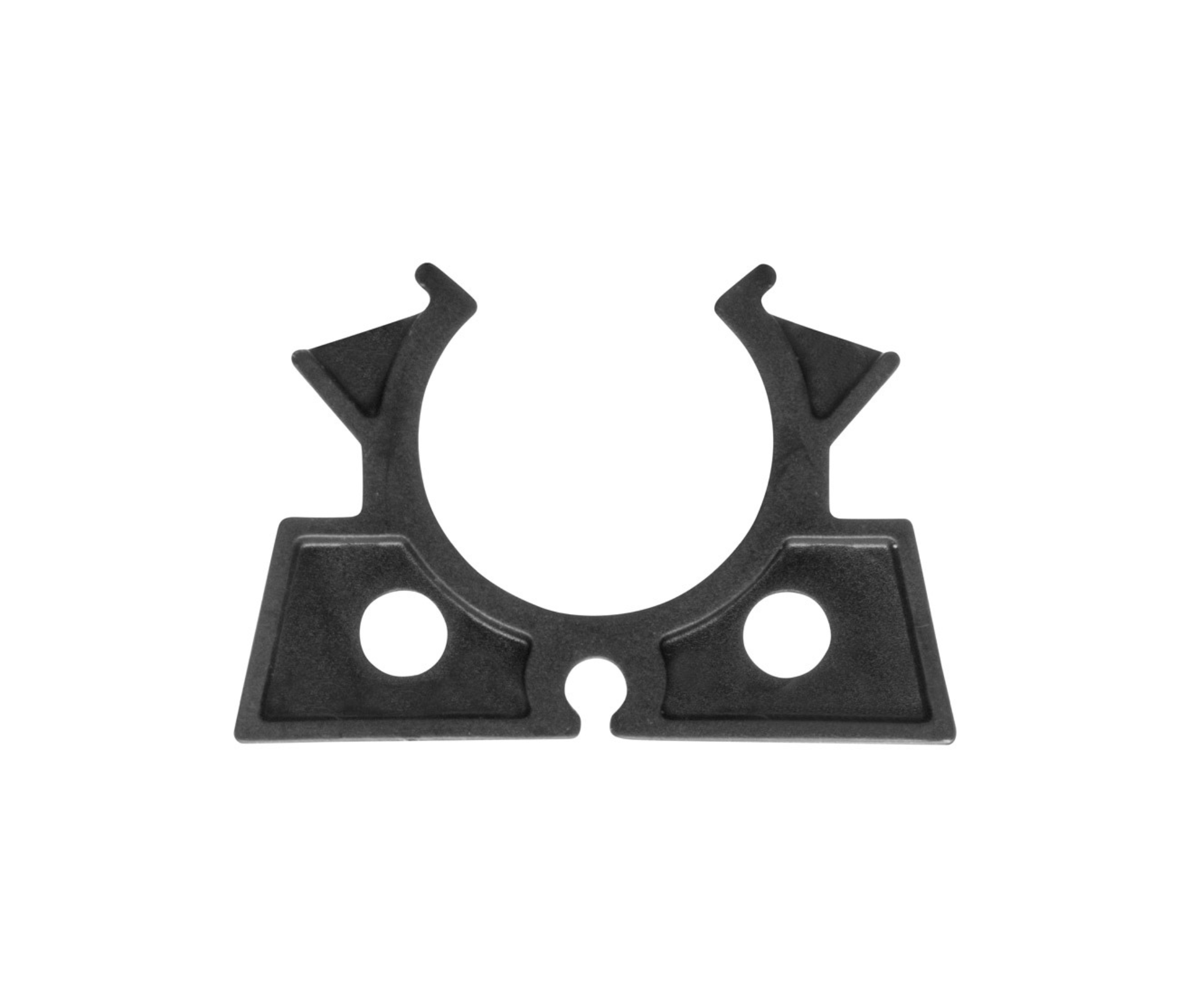

WIRE MESH CLIPS
Wire mesh clips are used to fix heating pipes directly on the reinforcing mesh surface. Clis fixation point to the mesh is done manually with a click, just like connecting the pipe to the clip as well. Such a system guarantees a simple and quick installation of surface heating with a minimum of components.
Clips are made of polypropylene, are adapted to the thickness of the mesh of 2-3mm. From available wire mesh clips there is a possibility of mounting pipes with a diameter of 16, 17 or 20mm.
WIRE MESH CLIPS 16 mm
length 35mm, width 6mm, height 24mm
for pipes with a diameter of 16 mm
for reinforced mesh of 2-3mm thickness
black colour; polypropylene material
assembly method -> manual pressure of the clip to the mesh, then push the pipe into the
inside of the clip with a click
packed in a bag of 50 pieces taped together
pallet: 24 boxes of 50 bags = 1200 bags
CODE: 116311
WIRE MESH CLIPS 17 mm
length 35mm, width 6mm, height 24mm
for pipes with a diameter of 17 mm
for reinforced mesh of 2-3mm thickness
black colour; polypropylene material
assembly method -> manual pressure of the clip to the mesh, then push the pipe into the
inside of the clip with a click
packed in a bag of 50 pieces taped together
pallet: 24 boxes of 50 bags = 1200 bags
CODE: 117311
WIRE MESH CLIPS 20 mm
length 35mm, width 8mm, height 24mm
for pipes with a diameter of 20 mm
for reinforced mesh of 2-3mm thickness
black colour; polypropylene material
assembly method -> manual pressure of the clip to the mesh, then push the pipe into the
inside of the clip with a click
packed in a bag of 50 pieces taped together
pallet: 24 boxes of 50 bags = 1200 bags
