PLATES WITH INSETS

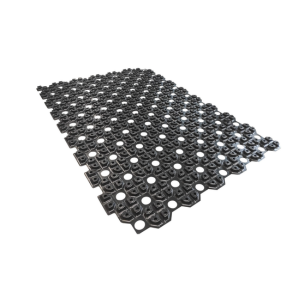

Thermoformable plate with insets is designed for quick laying of floor heating pipes in any constellation and frequency. Numerous insets keep the pipe firmly on the floor and the installation process itself is very quick as it does not require any additional tools. The plate is available as a separate product or in combination with EPS-100 polystyrene, which ensures optimal thermal insulation of the entire system.
EPS-100 polystyrene is hard – the floor will not crack even under heavy loads. Particularly recommended if higher loads are expected, such as heavy furniture, appliances, etc.
INSULATING PLATE WITH INSETS
Dimmention: width 1000 mm, height 1000 mm, insets height 20 mm
Insulation –EPS 100; thickness 15mm
Thermal conductivity λd ≤ 0,036 [W/mK
Compressive stress at 10% relative strain CS(10)100 ≥ 100 kPa
Dedicated for pipe diameter range 16-20 mm
Pipe distance 50 mm
Material – polystyrene film of black colour
Packaging– 70 pcs / pallet
CODE: 2315
INSULATING PLATE WITH INSETS
Dimmention: width 1000 mm, height 1000 mm, insets height 20 mm
Insulation –EPS 100; thickness 20mm
Thermal conductivity λd ≤ 0,036 [W/mK
Compressive stress at 10% relative strain CS(10)100 ≥ 100 kPa
Dedicated for pipe diameter range 16-20 mm
Pipe distance 50 mm
Material – polystyrene film of black colour
Packaging– 60 pcs / pallet
CODE: 2320
INSULATING PLATE WITH INSETS
Dimmention: width 1000 mm, height 1000 mm, insets height 20 mm
Insulation –EPS 100; thickness 30mm
Thermal conductivity λd ≤ 0,036 [W/mK
Compressive stress at 10% relative strain CS(10)100 ≥ 100 kPa
Dedicated for pipe diameter range 16-20 mm
Pipe distance 50 mm
Material – polystyrene film of black colour
Packaging – 40 pcs / pallet
